Máy Phun Bi Treo Giàn

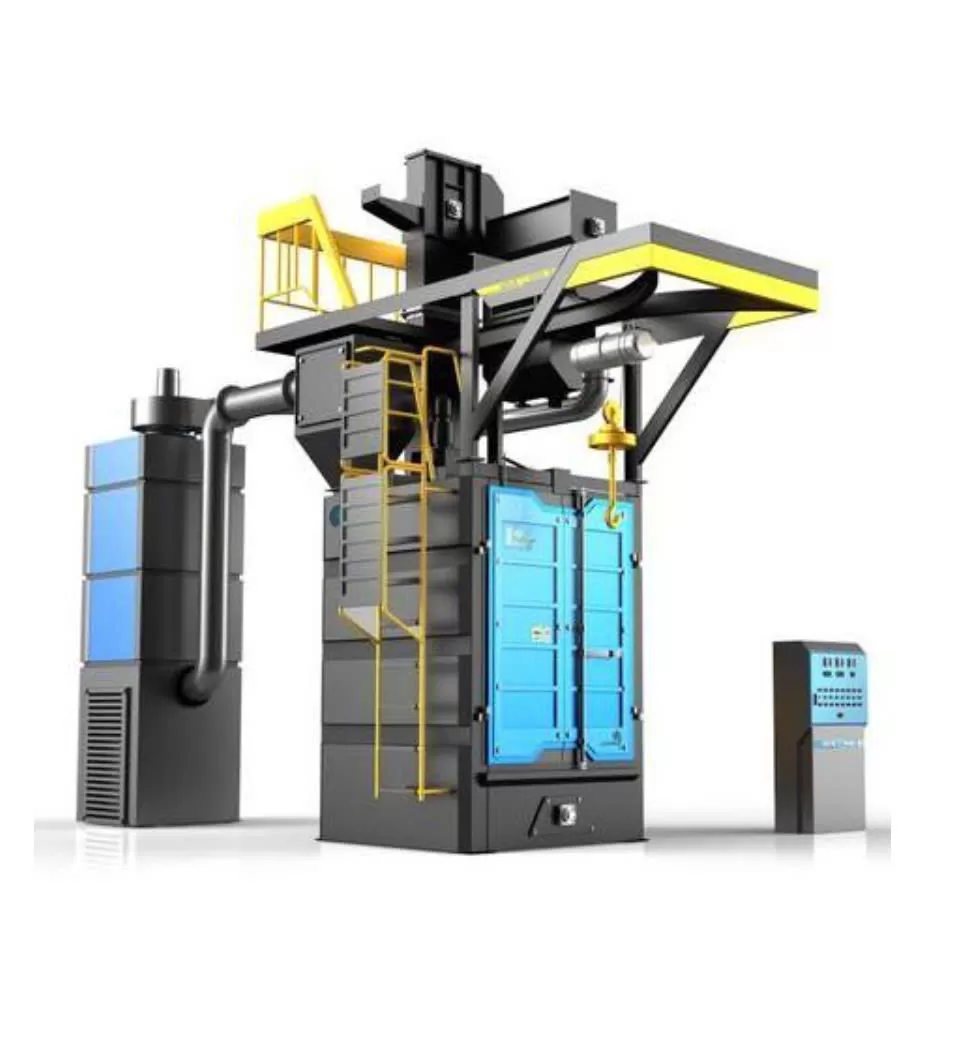

Double Hanger Shot Blasting Machine
Q3710E Type
-
Compact design,
-
Use hoist (pairs) to convey the work pieces. The work pieces will rotate driven by the hook self rotating system.
-
Many blast wheels are installed on walls of blasting chambers (generally one side), to make full coverage of the work piece, thanks to the self rotating mechanism.
-
Special wear-resistant liners inside blasting chamber guarantees long life.
-
Shot recycling system is used to purify and recycle the shot/grit, shattered abrasive or powdery dust is carried out by dust collecting system.
-
Electric system and pneumatic system are used to attain the machine to maximum automation goals.
Máy Phun Bi Treo Giàn
Technical parameters
1. Blasting chamber:
Dimension：2000B×2000L×2900H（mm）
Effective cleaning scope：∮1200×1500（mm）
Manual operation door
Top sealing leaked to door
2. Blasting wheel:
Blasting capacity： 2×220Kg/min
Model: QY360
blasting speed： 73m/s
Belt transmission
Motor power ： 2×15kw
3. Elevator:
Capacity：45T/h
Power： 5.5KW
4. Screw conveyor:
Capacity：45T/h
Power： 2.2KW
5. Separator:
Capacity： 45T/h
Wind speed of separation
Zone： 4-5m/s
Full curtain wind separate
Separating result＞99%
6. Shot gate:
Cylinder control
7. Hook system:
Max loading capacity：1000Kg
Rise-decrease speed：8m/min
Running speed：10m/min
Lifting power：2×1.5KW
Running power：2×0.2KW
8. Self-rotation system:
Rotation speed：4r/min
Power：0.75KW
9. Dust collector:
Model： ZB-48
Ventilation: 5500m3/h
Fan power： 5.5KW
Vibration motor power： 0.55KW
10. Total power: ～47.9KW
Working voltage: 380V/50Hz
11. Compressed air
Air pressure：0.6-0.8MPa
Consumption：0.1m3/min
12. Metal abrasive loading for first time
～1500Kg (Need to order separately)
13. Dust emission below: 120mg/m3
14. The noise of equipment: below 95dB
Double Hanger Shot Blasting Machine
Q3710E Type
-
Compact design,
-
Use hoist (pairs) to convey the work pieces. The work pieces will rotate driven by the hook self rotating system.
-
Many blast wheels are installed on walls of blasting chambers (generally one side), to make full coverage of the work piece, thanks to the self rotating mechanism.
-
Special wear-resistant liners inside blasting chamber guarantees long life.
-
Shot recycling system is used to purify and recycle the shot/grit, shattered abrasive or powdery dust is carried out by dust collecting system.
-
Electric system and pneumatic system are used to attain the machine to maximum automation goals.
